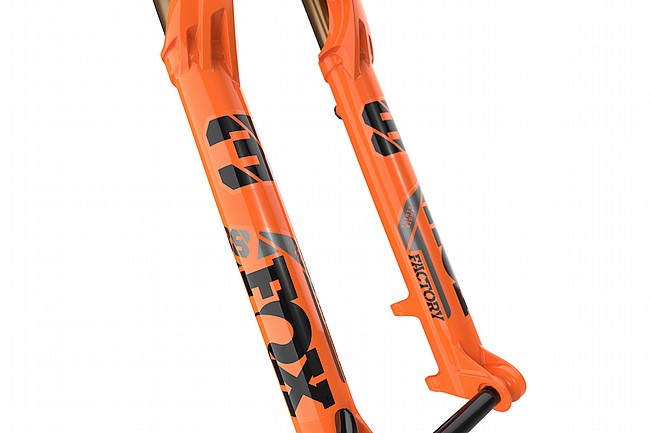

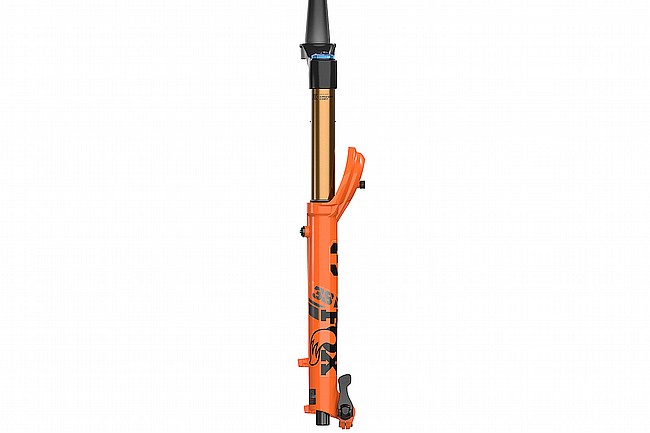

Fox Factory 38 Float 29in Suspension Fork
Fox Factory 38 Float 29in Suspension Fork
Fox Factory 38 Float 29in Suspension Fork
Fox Factory 38 Float 29in Suspension Fork
Fox Factory 38 Float 29in Suspension Fork
Fox Factory 38 Float 29in Suspension Fork
Fox Factory 38 Float 29in Suspension Fork
Click to zoom
Fox Factory 38 Float 29in Suspension Fork 1
Fox Factory 38 Float 29in Suspension Fork 2
Fox Factory 38 Float 29in Suspension Fork 3
Fox Factory 38 Float 29in Suspension Fork 10
Fox Factory 38 Float 29in Suspension Fork 9
Fox Factory 38 Float 29in Suspension Fork 11
Fox Factory 38 Float 29in Suspension Fork 7

Fox Factory 38 Float 29in Suspension Fork

Pricing and Order Section

Mfg PartNum:
Earn $19.98 in Rewards credit. Click to Learn More.
1998
POINTS
Sale
$999.00
MSRP: $1,249.00
SAVE 20%
In Stock
This model is not eligible for Rewards points
Price matches are is not eligible for Rewards points
Qualifies for Free Shipping!


Description

The Hard Hitting, Long-Travel Enduro Specialist

When you need to go really big, reach for the Fox 38. Optimized for 160-180mm of travel and packing the same revolutionary feature set as the 36, the 38 redefines what you think a long travel single crown fork is capable of, and sets a new benchmark for confidence, performance, and durability.

Smoother

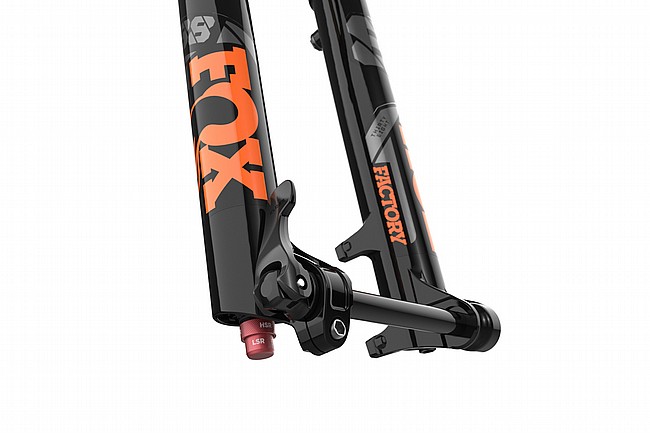

The all-new 38 comes equipped with a new quick-release lever operated patent-pending floating axle system, combining the benefit of a floating axle with the ease of a tool-free quick-release. With this system, spacing is locked in via a floating sleeve, allowing repeated front wheel removal and reinstallation while maintaining perfect fork alignment. Floating sleeve positioning comes preset from the factory so if you are unsure of how to operate the floating axle system or simply don't want to bother with it, you can just install the front wheel and get on with your ride.

As a fork compresses, the air volume within the lower legs decreases, increasing air pressure. The more the fork compresses, the more pressure increases. This effect can have the unintended consequence of preventing full travel from being achieved. Fox lower leg channels help alleviate this issue by dramatically increasing air volume within the lower legs and thereby reducing the amount of additional unintended pressure ramping. Another benefit of these channels is that lower leg bath oil is circulated to the upper reaches of the lower legs, continuously lubricating the foam rings and bushings as the fork compresses and extends through its travel.

Fox's lower leg bleeders allow for atmospheric pressure equalization at the simple press of a button. Pressure build-up in the lower legs dramatically decreases fork performance, preventing full travel from being achieved, and diminishing small bump sensitivity and responsiveness.

Stiffer

Fox's all-new lower leg design pulls out all the stops, shaving every possible gram while making sure not to compromise stiffness or strength requirements of modern enduro and gravity style riding.

The arch design of the all-new 38 is designed to pair perfectly with modern Enduro and Downhill bikes. Head tube profiles have grown larger and larger, and fork offsets shorter and shorter. Fox's new arch shape takes this need into account by jutting forward to provide ample headtube clearance at full compression.

More Tunable

Fox's GRIP2 damper is the benchmark for unparalleled ride quality and ultra-precise adjustability. GRIP2 includes their patented Variable Valve Control (VVC) technology which allows for external fine-tuning of suspension performance. GRIP2 achieves with the twist of a knob what typically requires the time consuming and complicated task of completely disassembling and reassembling the fork.

EVOL technology increases negative air spring volume, optimizing small bump sensitivity. EVOL's linear spring curve delivers plushness off the top, extra mid-stroke support, and more tunable bottom-out progression. The benefits of EVOL are further enhanced by our new Lower Leg channels and Bleeders, which both function to reduce air pressure captured in the lower legs, allowing the EVOL air spring to operate freely without unintended interference.

Features:

  • Fits 29" (ISO 662)
  • Travel: 160/170
  • Rake: 44
  • Axle: 15QR x 110
  • Rotors: 180 direct Post Mount, Up to 203 compatible
  • Steerer: 1.5 Elliptical Taper
  • Starting weight: 2180g
  • Genuine Kashima Coat
  • Lower Leg Bypass Channels
  • Lower Leg Bleeders
  • Lower Leg Arch
  • GRIP2 Damper
  • FLOAT EVOL Air Spring
  • Optional Fox 36/38 Mud Guard with sturdy 4-point direct-mount attachment

B-Stock - This product has one or more B-Stock units available. These units can be purchased at a discount (see option select). B-Stock units were returned from other customers and may have missing or damaged packaging materials. These units are otherwise as new. The full manufacturer warranty applies. Click Here for more information.

Signature will be required when taking delivery of this product.

Specifications

Black 160mm - 44mm Rake Grip2

Mfg PartNum: 910-21-024
