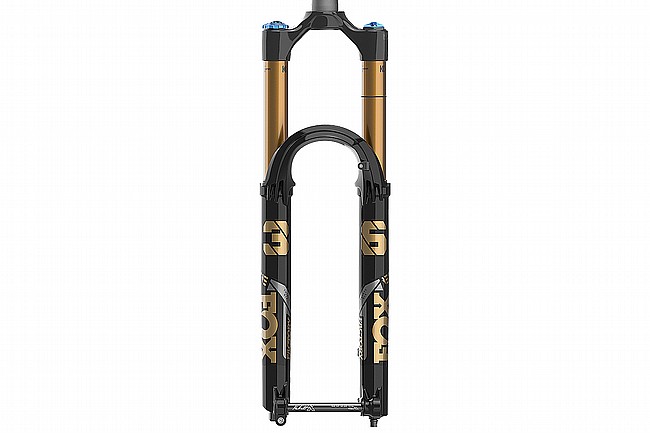

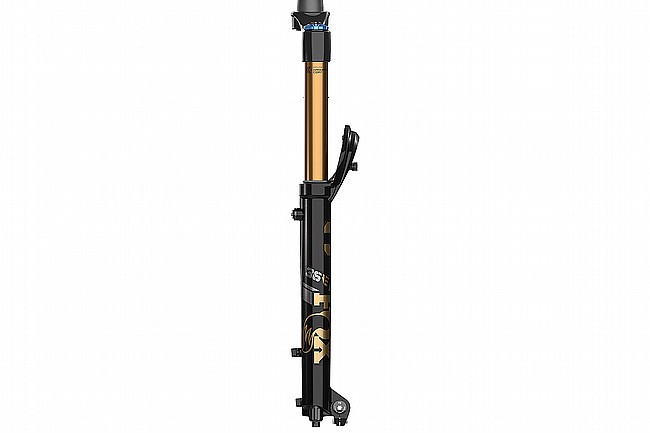

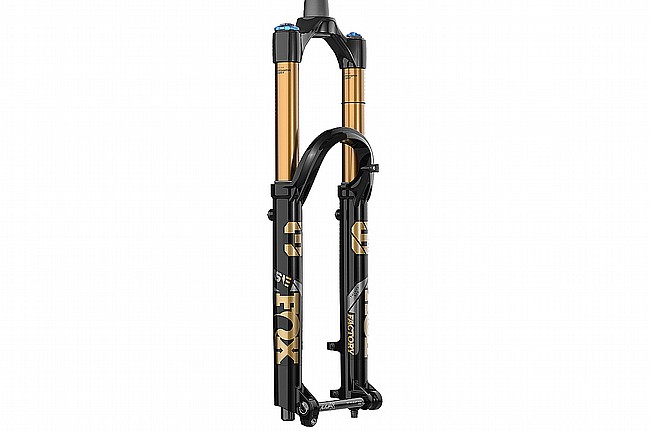

Fox Factory 36 Float E-Optimized 29" Suspension Fork

Description

The Undisputed All-Mountain Champion, Now E-MTB Ready

The award winning Fox Factory 36 continues its all-mountain domination with a reinforced chassis to handle the increased loads of eMTB and World Cup EDR-E racing.

GRIP X

Trail and all-mountain riders no longer need to choose between a descent-focused damper or a lightweight endurance damper. GRIP X exudes exemplary descent performance, refined for less weight, easier set up and an easy access firm mode for pedaling efficiency.

KABOLT X AXLE

A lightweight bolt-on floating axle, the Kabolt X shaves grams while increasing torsional stiffness via a sleeveless, single-sided pinch bolt design. Chassis alignment reduces unwanted friction between the upper and lower fork legs, providing much smoother suspension movement throughout the entire range of travel.

LOWER LEG BLEEDERS AND BYPASS CHANNELS

Bleeders allow atmospheric pressure equalization at the push of a button. Lower leg bypass channels increase volume to alleviate pressure ramping as the fork moves through its travel. Both result in better fork performance by increasing small bump sensitivity and responsiveness.

LOWER LEG ARCH

The lower leg design of the 36-e shaves every possible gram while maximizing stiffness and strength requirements of enduro and gravity riding.

Features:

• Rake: 44mm
• Chassis: e-Optimized
• Wheelsize: 29in
• Series: Factory
• Travel: 160mm
• Damper: Grip X
• Damper Controls: HSC-LSC-HSR-LSR
• Axle: Kabolt-X 110
• Steerer: 1.5 Taper
• Upper Tube Finish: Kashima Coat
• Air Channels: Yes
• Bleeders: Yes
• Floating Axle: Yes
• Rotor Size: 180 direct Post Mount, Up to 230 compatible
• Mud Guard Mount: Optional FOX 36/38 Mud Guard with sturdy 4-point direct-mount attachment
• Air Spring: FLOAT EVOL
• Starting Weight: 1929g (36, 29, F-S, 160, Grip X, Kabolt X)*
