Transport Any Bike With No Frame Contact

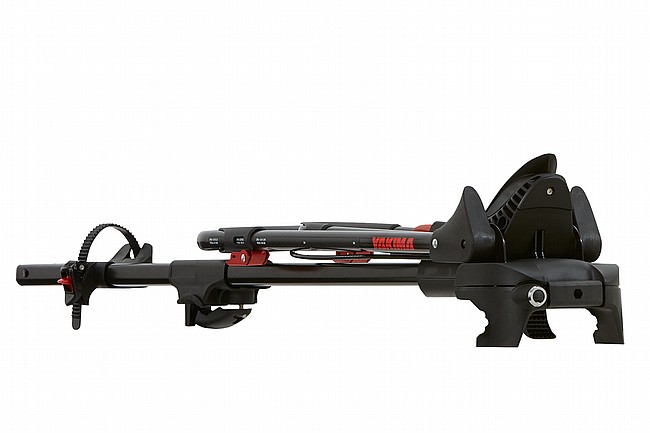

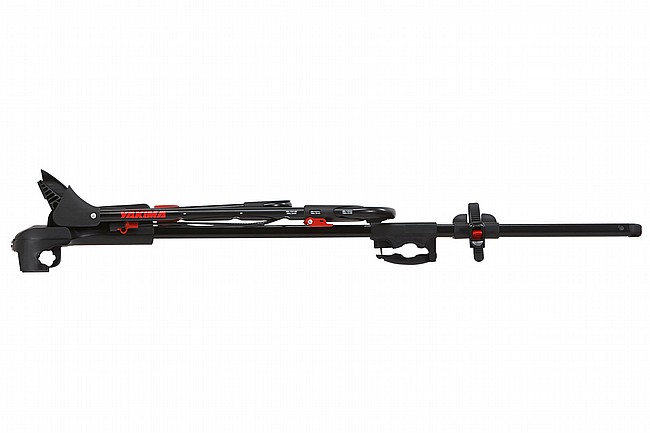

Yakima's FrontLoader Universal Roof Rack is their most versatile rooftop bike mount. This rack can accommodate disc brakes, thru axles, fenders, and full suspension bikes without any frame contact, ensuring carbon fiber and paint protection. For easy loading, wheels stay on and the rack holds the bike upright while securing it to the mount. The FrontLoader Universal Roof Rack can fit a broad range of crossbar styles, including Yakima round, square, factory, and aerodynamic cross bars. It's compatible with a wide range of wheel sizes as well, 20 to 29 inches, and tire widths up to 3 inches. The installation is super quick and easy - no tools or assembly necessary.
- Capacity: 1 bike, up to 40lbs w/ min. 18" crossbar or up to 30lbs w/ min. 16" crossbar.
- Minimum and maximum crossbar spreads: 16" - 48".
- Rack Weight: 13lbs.
- Dimensions: L-56" x W-7" x H-7.5".
- Base rack system required for installation.
- Does not fit tandems or recumbents. SKS Locks sold separately
- Simple vertical, wheels-on loading.
- Fits virtually any wheel from 20" to 29", MTB and 700c road; widths up to 3".
- Zero contact with frame.
- Quick, tool-free installation; no assembly required.
- Downloadable installation manual.
Returns: This product is overweight and/or oversize and does not qualify for our fixed rate return shipping label. If you need to return this item, we can offer a return shipping label at our discounted shipping rates, or you can arrange for your own return shipping.
Overweight shipping charges apply for this item so shipping promotions for other products may not apply. To get a shipping quote, add the item to your shopping cart and click the Get Shipping Quote button.
B-Stock - This product has one or more B-Stock units available. These units can be purchased at a discount (see option select). B-Stock units were returned from other customers and may have missing or damaged packaging materials. These units are otherwise as new. The full manufacturer warranty applies. Click Here for more information.
Mfg PartNum: 8002103
Bike Capacity: 1 Bike
Rack Style: Roof Rack
Locks: Bike Lock Integrated
I have two of the Frontloaders for mine and my girls 29ers and absolutely love the no hardware installation right out of the box and ease of use. There are markings for the size of the bike tire for easy adjustment. The rack holds the bike very sturdy and I have no hesitation with it at all. My only desires are 1) wish it was just a tad bit shorter so that the trunk of my Audi A3 would open all the way (I'd say it opens about 80%) and 2) that the optional lock core would have gone through the red knob that is used to tighten the front clamp for the tire. As it is right now, the Frontloader has one lock core to go to the front of the rack to prevent someone from actually stealing the carrier from your roof rack and the second lock core is one an attached cable that you can wrap around your bike as theft deterrent for someone to steal your actual bike. If someone really wanted to and had the cable cutters, they would cut the cable and start to unwind the red knob to loosen the front clamp and off they go with your bike. So if there were a lock on the red knob to prevent it from turning, then it'd be near impossible to steal.
But otherwise, this is a fantastic rack... especially at the sale price!
Got a new ride so need to transfer my old unit over to it. I own 2 of these racks from 2013. One had alot of rust so replace it with this 2019/2020 frontloader. The adjustments improved for more modern mtb bikes. I got a long strap in back so 27.5 x 3.0 fit and 29 x 3.0 fits (I used a strap on 2013 model). The settings even say 29er up 3.0 and 27.5 tires (old one was more 26 and 700c wheels). My wheel base on bike is 1240m long so as bike get longer I can see yakama making an improvement on this unit (yes some gravel bikes are going 500m long chainstay).
We have been longtime fans of Yakima racks and this one ranks among our favorites. It makes it so easy to load our daughterï¿½s bike on the van without removing her front tire. It really is a drop-and-go rack. We use it in the middle of a Yakima Load Warrior with racks on either side on top of our Toyota Sienna. It works really well! We are saving up for more. Buying this rack from Western Bike Works was
easy and was the most affordable option we found.
Push up the front wheel hoop, lift the bike into the rails, roll the front wheel into the hoop, hold it with one hand while you raise the rear hoop with the other, tighten the adjusting nut while holding the rear hoop, then strap the rear wheel in.
Much less danger of scratching you bike or vehicle than the older frame clamping carriers. Plus, the front wheel stays on meaning you don't have to fumble around immediately after its off the carrier.
Super easy to set up, clear instructions. Have had no issues hauling bikes for several months. The hardest part is getting my bike up on the roof of my crossover SUV, it would be much easier if I had a car. Have not tested at highway speeds.
I purchased this rack to move a bike from Ohio to Delaware. This was the only rack available at the time. The rack itself is heavier than I would have liked. My old Thule fork grabber was easily less than half the weight, but it is long gone. Installing the rack was fairly straightforward, albeit a little cumbersome getting the connections in the correct places. Adjusting the rack to fit the bike was also a bit annoying, but that is partly because the bike had a front fender and that had to be removed to close the rack on the front tire. I also had to mount the rack with the bike facing backward on the car because the wheel trough is too long for me to open the hatchback on my 2019 Kia Niro EV. So, all in all, this rack works, but it is probably best for lightweight bikes and for use on sedans, rather than on small SUV's.
I've used two racks to haul my road bikes around, and everything was almost perfect. The only complaints I can dig up are about the screwing mechanisms (1) it takes a while to screwunscrew it to get the bike in or out, and one of my two racks has it much harder going than the other one, and (2) the plastic handle sometimes comes off the nut and spins freely instead of driving the nut, making it even longer and more fun
Neither of the issues are that bad, but only ideas for the Yakima engineers on how to make the rack even better
I used this to carry a 70lb cargo bike on a three hour drive up to the mountains. The rack held firm and did a great job, and it's a breeze to install and use. My only complaint is that the rear bracket has two separate pieces, and if you forget to secure the loose piece when you take the rack off, it will drop onto the ground without you noticing, and you'll never find it. I don't think that's a great design. Also, the little Yakima branded clip at the back of the rails falls off whenever it has an opportunity. A good product with a couple of things that need to be attended to...
I had the original front loader racks on my old car. Got a new car and bought the new ones. While this is still a great rack, it is a little more difficult to load the bike and than the original. The red knob keeps the front wheel from settling in when you are lifting the bike up high. Also, Yakima has gone to using more plastics than the original, making the unit heavier. Still a good rack.
I had fork mount yakima racks before and stuck the front wheel in the yakima wheel house to avoid a muddy interior. But having round bars the wheel house would roll back with any acceleration and having to take the wheel off, especially with hydraulic brakes is both dangerous and a pain in the butt. But with this all in one rack with built in locks all the previous hassle is gone and it, in my opinion looks cleaner
