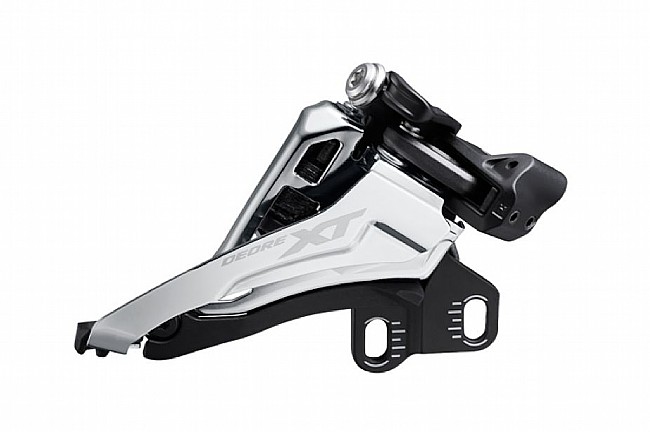

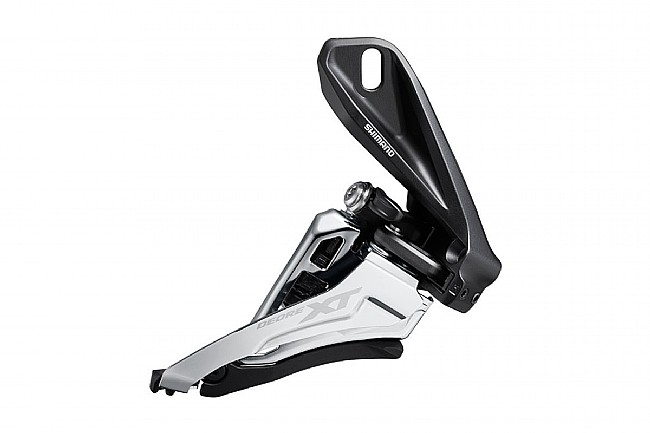

Shimano XT FD-8100 Front Derailleur Side Swing, E-Type Mount
Click to zoom

XT FD-8100 Front Derailleur

Mfg PartNum:
Earn $2.24 in Rewards credit. Click to learn more.
This style is not eligible for Rewards points
In Stock
Please Confirm Style
This item is currently not in stock. Click Notify Me to receive an email when the item becomes available.
InstantPrice MatchWhat is this?
Free Shipping on Orders Over $50*

SHIMANO DEORE XT - Front Derailleur - SIDE SWING - Clamp Band Mount - MTB 2x12-speed

The SHIMANO DEORE XT M8000 series front derailleurs deliver light action, and confidant, secure shifting for aggressive trail riding. They offer an extra-wide gear range with a front double 36-26T combination.


  • Increased traction range and no chain rub for long-travel bikes
  • One spec for 48.8 mm & 51.8 mm chain line
  • Extra wide range with front double 36-26T
  • Available in D, E, and M-type mounts
  • *M type mount requires adapter
  • Compatible with a 2.3-inch tire on wider rims
  • Proprietary design aids in reliable shifts
  • Wide frame mounting compatibility
  • Greater tire clearance
  • Greater compatibility
  • B-Stock - This product has one or more B-Stock units available. These units can be purchased at a discount (see option select). B-Stock units were returned from other customers and may have missing or damaged packaging materials. These units are otherwise as new. The full manufacturer warranty applies. Click Here for more information.

    The product weight specified is an approximate weight based on the manufacturer's specifications (if available) or our measurement of one or two examples. For most products, the weight will typically vary by 5% to 10%.


    Model Number: FD-M8100-M


    Series: SHIMANO DEORE XT M8100 Series


    Weight: 114 g


    Action: SIDE SWING


    Cable Route Type: Front-Pull


    Chainline: 48.8 (142 mm O.L.D.), 51.8 (148 mm O.L.D.)


    Chain stay angle: 66-69


    Compatible chain: HG 12-speed


    Link bushings:


    Mount Type: Clamp Band_31.8 mm(w/ M size adapter), Clamp Band_34.9 mm


    Speeds: 2x11


    Top gear teeth: 36-38T


    Total Capacity: 10T

    Side Swing, E-Type Mount

    Mfg PartNum: IFDM8100E6
