Smooth, Quick Hydraulic Disc Braking

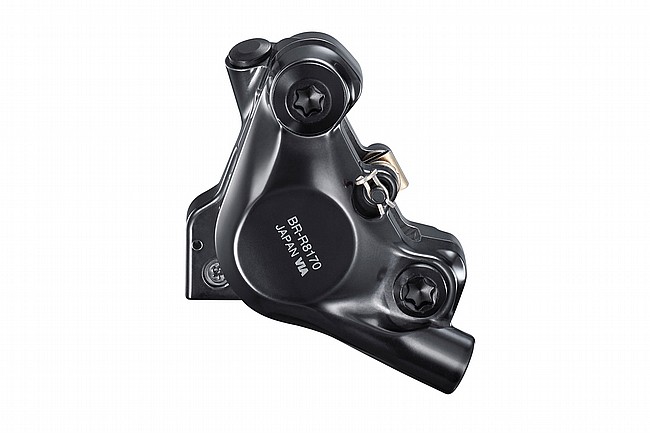

Introducing the Shimano Ultegra BR-R8170 Flat Mount Disc Brake Calipers.
To the delight of riders and mechanics alike, the new Ultegra BR-R8170 caliper delivers enhanced modulation, a quieter brake system, and an easier than ever bleed process.
The Ultegra R8170 disc brake caliper brings a new level of control to the road cycling world with enhanced modulation and a quicker initial braking point. Despite its smaller construction, the system is quieter than ever and easier to maintain.
- 10% wider pad clearance decreases brake noise
- Maintenance-friendly bleeding process
- Weight: 146g (Front) 136g (Rear)
B-Stock - This product has one or more B-Stock units available. These units can be purchased at a discount (see option select). B-Stock units were returned from other customers and may have missing or damaged packaging materials. These units are otherwise as new. The full manufacturer warranty applies. Click Here for more information.
The product weight specified is an approximate weight based on the manufacturer's specifications (if available) or our measurement of one or two examples. For most products, the weight will typically vary by 5% to 10%.
Brake Pad Type: Disc
Brake Parts: Caliper
Brake Type: Disc
Weight: 146g (Front) 136g (Rear)
Brake Hose Kit: SM-BH90-JK-SSR
Brake mount: Flat Mount
Brake Oil: SHIMANO Mineral
Recommended Rotor: RT-MT800
Mfg PartNum: IBRR8170F6RF
Mfg PartNum: IBRR8170RDRF
Shimano's compatibility chart shows this to work for the previous generation Ultegra 8070 braking system without having to replace the shift levers. My 8070 rear caliper coating was corroded and looked terrible. It stilled functioned properly. However, the new 8170's slightly wider gap seemed appealing. I had to nip off a couple of the mounting bolts so they didn't bottom out before fully tightening. After bleeding a couple of times, the rear brake works well. Since the caliper comes with a new set of pads, I figured the final cost of the caliper alone was what I paid minus the cost of a set of replacement pads, or about $50 after buying it on sale.
Had to upgrade my calipers due to the 12speed di2 upgrade and concern with compatibility of the older calipers and the new shifter/brake levers. The new design has made this a worthwhile upgrade. The additional clearance for the rotors is a welcome change alone almost entirely ending that rotor rub issue some folks experience that requires periodic readjustment of the rotors and brake pads. Bleeding the brakes has never been easier.
These brakes were a great deal for anyone willing to do their own maintenance and etc. Cheaper than the set that comes with the hose preinstalled. The shipping was fast my only negative is I wish the instructions provided by the manufacturer in the box were better.
