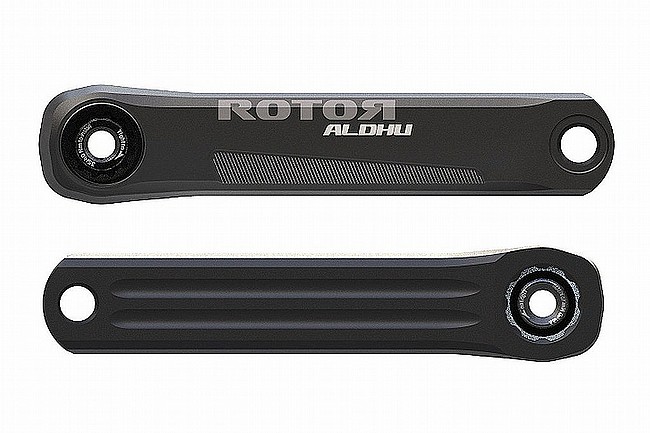

Rotor Aldhu24 DM Crank Arms
Click to zoom

Rotor Aldhu24 DM Crank Arms

Pricing and Order Section

Mfg PartNum:
Earn $12.80 in Rewards credit. Click to Learn More.
MSRP: $320.00
In Stock
This size is not eligible for Rewards points
Price matches are is not eligible for Rewards points
pricematch tag
InstantPrice MatchWhat is this?
Qualifies for Free Shipping!


ROTOR's ALDHU 24 DM Cranks: Performance-Enhancing Modularity in Action

Take control of your crankset with total modularity at minimal weight with ROTOR's new ALDHU cranks. These streamlined cranks combine an innovative modular structure allowing complete axle and chainring adjustability to individually customize your ride based on your needs and preferred standards.

It begins with the 3D+ CNC machining to ensure unmatched rigidity from spindle to chainrings so you can take control on the roughest roads. This iteration of ALDHU pares the traditional 30mm version down to a 24mm spindle that offers the stiffness of steel paired with any 24mm bottom bracket.

A wealth of crank-arm lengths allow you to optimize your power, while OCP Mount technology lets you further fine-tune your ride with Q rings. The ALDHU's proprietary, patent-pending design is based on the modularity of each crankset component.

This crankset, with its variety of crank length options and compatibility with the INspider power meter, is the perfect upgrade solution for bikes that can only accommodate 24mm crank axles, such as Trek's BB90 standard.

Tune Your Ride with OCP Mount Technology

Optimum Chainring Position (OCP) Mount technology allows the rider to fine-tune the orientation of ROTOR's oval Q Rings by shifting them one degree at a time, finding the right balance in each pedal stroke for smooth power.

The ALDHU name pays homage to ROTOR's racing heritage as an abbreviation of Alpe d'Huez, commemorating ROTOR's first iconic victory at the Tour de France with Carlos Sastre.

Rotor's Aldhu 24 DM Crank Arms are compatible with Rotor's Road Axle for Aldhu/Vegast Cranks.

Complete The Crankset

  • Spiders: 110x4 DM Spider OR Aero MAS Spider
  • Chainrings: Aero 110x4 Sram AXS OR Aero 110x4 for 2x Road
  • DM Chainrings: Direct Mount 2x Chainring
  • Spindle: Road 24mm Axle
  • Spacers: Spacer Kit


    • Weight: 490g (w/o rings)
    • Lengths Available: 155, 165, 170, 172.5, 175
    • Spindle Size: 24mm
    • 7075 aeronautic grade aluminum construction
    • Compatible with: 24mm BSA, ITA, BB86, BBRight, BB386 Evo
    • Compatible with Rotor's Road Axle for Aldhu/Vegast cranks

    B-Stock - This product has one or more B-Stock units available. These units can be purchased at a discount (see option select). B-Stock units were returned from other customers and may have missing or damaged packaging materials. These units are otherwise as new. The full manufacturer warranty applies. Click Here for more information.

  • Specifications


    Mfg PartNum: C02-108-21010-0
