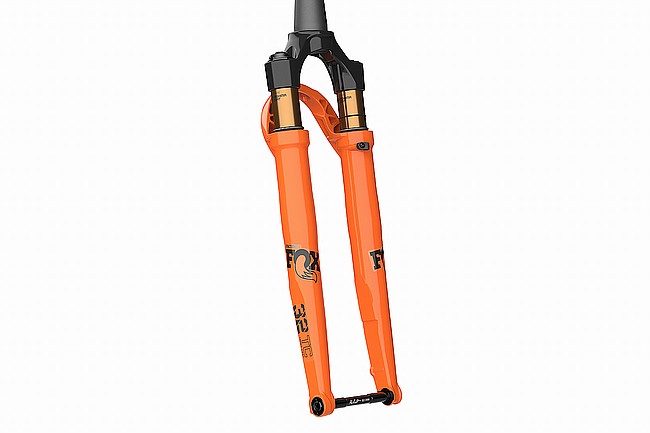

Fox Factory 32 TC Gravel Fork Shiny Black
Fox Factory 32 TC Gravel Fork
Fox Factory 32 TC Gravel Fork
Fox Factory 32 TC Gravel Fork
Fox Factory 32 TC Gravel Fork
Fox Factory 32 TC Gravel Fork
Fox Factory 32 TC Gravel Fork
Fox Factory 32 TC Gravel Fork
Shiny Black
Click to zoom
Fox Factory 32 TC Gravel Fork 1
Fox Factory 32 TC Gravel Fork 4
Fox Factory 32 TC Gravel Fork 5
Fox Factory 32 TC Gravel Fork 6
Fox Factory 32 TC Gravel Fork 7
Fox Factory 32 TC Gravel Fork 8
Fox Factory 32 TC Gravel Fork 9
Fox Factory 32 TC Gravel Fork 10

Fox Factory 32 TC Gravel Fork

Pricing and Order Section

Mfg PartNum:
Earn $15.18 in Rewards credit. Click to Learn More.
1518
POINTS
Sale
$759.00
MSRP: $949.00
SAVE 20%
In Stock
This model is not eligible for Rewards points
Price matches are is not eligible for Rewards points
pricematch tag
InstantPrice MatchWhat is this?
Qualifies for Free Shipping!


Description

Gravel-Tuned—Smoother, Faster, More Confident

The lightest suspension fork FOX has ever built, the all-new 32 Taper-Cast Gravel Fork has arrived. It's time to ditch the flex stem and undamped leaf springs; suspending the bike greatly improves rider experience, increases control, takes the edge off extended gravel rides and dramatically expands the terrain you can cover.

Developed in conjunction with emergent gravel bike designs, the 32 Taper-Cast features a sleek drop crown profile and new knob shapes that drastically improve downtube clearance, for fitment on all frame sizes and styles. A sleek, reverse arch design further improves fitment, decreases frontal area for better aerodynamics and provides stiffness through the arch matrix design.

Open-Medium-Firm + Precision Compression

Equipped with FOX's proven FIT4 damper, this lightweight package retains all the tunability of its mountain lineage, including adjustable travel options up to 50mm. The lightweight, short-travel optimized air spring requires fewer, if any, volume spacers and the design employs lower leg air/oil bypass channels. Factory Series forks feature an additional 22 clicks of low-speed compression adjust in the Open mode, allowing riders to fine-tune their exact damping preferences.

The incredible 1226g weight retains functionality such as integrated fender mounts, 160mm and 180mm flat mount compatibility. The fork also features a lightweight Kabolt thru axle, and a longer steerer to allow for greater fitment options on gravel frames.

Features:

  • Black or Orange
  • 40 or 50mm of travel
  • 45 or 50mm rake
  • Kabolt 12x100 TA
  • Kashima Coat finish
  • Fits 160 direct Flat Mount rotors, up to 180 compatible
  • Fits up to 700c x 50mm
  • (Optimized for 700c – not 650b compatible)
  • Axle to crown: 435.5mm - 40mm travel / 445.5mm - 50mm travel
  • Included full fender mount hardware
  • FLOAT EVOL Air Spring
  • 1.5 Taper Steerer Tube
  • 1226g

B-Stock - This product has one or more B-Stock units available. These units can be purchased at a discount (see option select). B-Stock units were returned from other customers and may have missing or damaged packaging materials. These units are otherwise as new. The full manufacturer warranty applies. Click Here for more information.

The product weight specified is an approximate weight based on the manufacturer's specifications (if available) or our measurement of one or two examples. For most products, the weight will typically vary by 5% to 10%.

Signature will be required when taking delivery of this product.

Specifications



Weight: 1226 grams

Shiny Orange - 40mm Travel/45mm Rake

Mfg PartNum: 910-20-256

Shiny Black - 40mm Travel/50mm Rake

Mfg PartNum: 910-21-138
