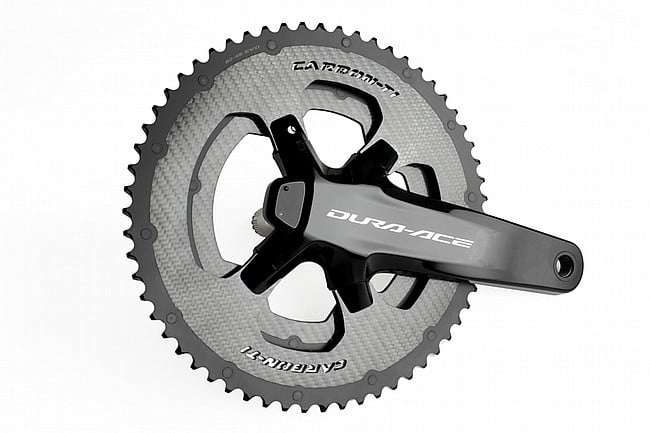

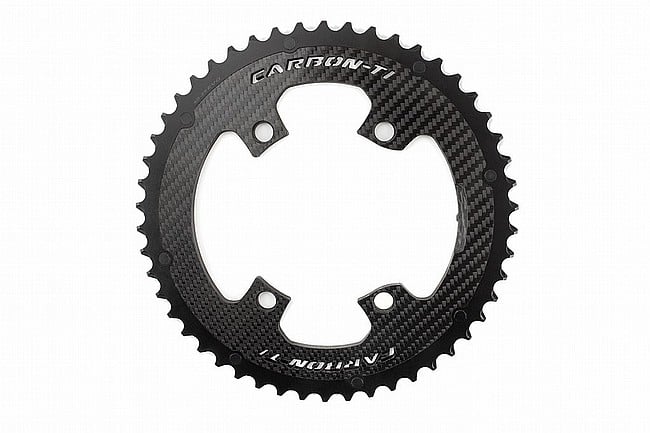

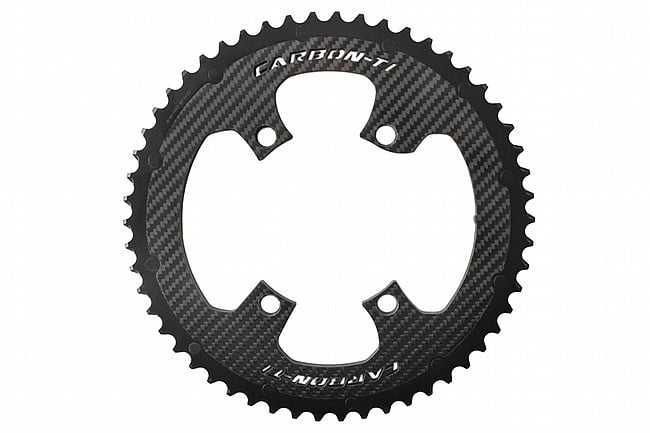

The Carbon-Ti X-CarboRing EVO For Shimano 12-speed is the latest evolution of super-light chainrings for racing bikes with a composite structure in aluminum alloy and carbon fiber.
Designed and manufactured in Italy, Carbon-Ti is dedicated to producing the highest quality bicycle components. Their components have been ridden to multiple stage and general classification victories by cycling champions such as the likes of Tadej Pogacar.
The chainring itself is made with ultra-light AL7075-T6 aluminum alloy and 3K glossy structural carbon fiber, resulting in an incredibly stiff chainring for maximum drivetrain efficiency. Smooth and precise shifting is ensured by the titanium ramps and pin elements built into the chainring.
Specifications:
- X-CarboRing EVO Chainrings are compatible with Shimano 11 and 12 speed and SRAM 11 speed drivetrains
- BCD: 110mm 4-arm
- NOT compatible with SRAM AXS drivetrains
- Must be used with Carbon-Ti X-CarboRing inner chainring
- Recommended chainring combinations: 58/46, 56/44, 54/40, 53/39, 52/36 and 50/34
- Weights: 60t=158g, 58t=148g, 56t=136g, 55t=134g, 54t=114g, 52t=104g, 50t=97g
B-Stock - This product has one or more B-Stock units available. These units can be purchased at a discount (see option select). B-Stock units were returned from other customers and may have missing or damaged packaging materials. These units are otherwise as new. The full manufacturer warranty applies. Click Here for more information.
Specifications
Mount Type: Shimano 4-Bolt | |
Speed: 12 | |
Type: 2x | |
Use: Road | |
50t | Tooth Count: 50t |
Mfg PartNum: XCRE50I110DA9200-P | |
52t | Mfg PartNum: XCRE52I110DA9200 |
Tooth Count: 52t | |
54t | Tooth Count: 54t |
Mfg PartNum: XCRE54I110DA9200 | |
55t | Mfg PartNum: XCRE55I110DA9200 |
Tooth Count: 55t | |
56t | Mfg PartNum: XCRE56I110DA9200 |
Tooth Count: 56t | |
58t | Mfg PartNum: XCRE58I110DA9200 |
Tooth Count: 58t | |
60t | Tooth Count: 60t |
Mfg PartNum: XCRE60I110DA9200 |
