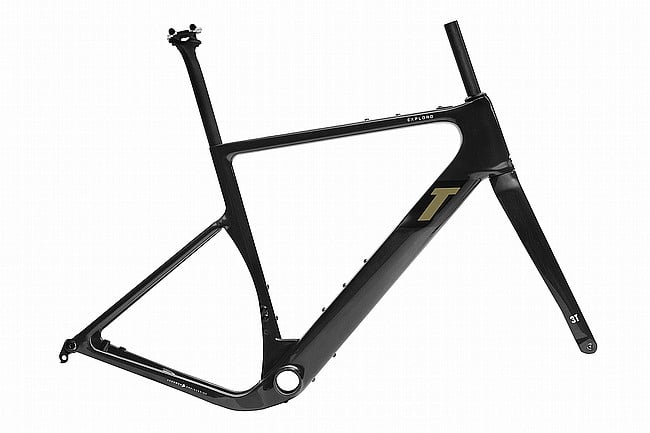

3T Exploro Ultra Gravel Frameset Black Glossy
3T Exploro Ultra Gravel Frameset Steel Blue
3T Exploro Ultra Gravel Frameset Steel Blue
3T Exploro Ultra Gravel Frameset Steel Blue
3T Exploro Ultra Gravel Frameset
3T Exploro Ultra Gravel Frameset
Black Glossy
Click to zoom
3T Exploro Ultra Gravel Frameset 9
3T Exploro Ultra Gravel Frameset 6
3T Exploro Ultra Gravel Frameset 4
3T Exploro Ultra Gravel Frameset 5
3T Exploro Ultra Gravel Frameset 8
3T Exploro Ultra Gravel Frameset 7

3T Exploro Ultra Gravel Frameset

Pricing and Order Section

Mfg PartNum:
Earn $108.47 in Rewards credit. Click to Learn More.
10847
POINTS
Sale
$2,169.30
MSRP: $3,099.00
SAVE 30%
Backorder
This color/size is not eligible for Rewards points
Price matches are is not eligible for Rewards points
This item is currently not in stock but is available to purchase today as a backorder. It is expected and will be shipped when available.
pricematch tag
InstantPrice MatchWhat is this?
Qualifies for Free Shipping!


Description

Unstoppable

Get to the worst roads fast with the aero frame & road-inspired riding position of the 3T Exploro Ultra. Many riders these days love riding in rough terrain but live in a more urban jungle. So you need a bike that is fast on-road and capable off-road. Keep your grip with massive tires (not very aero but you'd be surprised at the speed) and go for a standard round, dropper or suspension post inside the Ultra's aero seattube. Add a few packs and the Ultra is even ready for epic overnight adventures.

The Ultra is 3T's most extreme bike. Starting with 55-61mm wide tires, they then designed the whole aero package around those to keep the on-road speed high. If you ride on less extreme terrain, you can also fit 700c tires up to 45mm WAM (With As Measured).

Realfast Aerodynamics

The Ultra was 3T's most difficult aerodynamic challenge to date: starting with massive 55-61mm tires and then making the bike aero. There's nothing to be done about the tires, they're big and the knobs don't help. What can be done is to take the airflow mess that comes off the front wheel and try to catch and redirect it. That's why you will see the 60mm wide downtube placed closely behind the front wheel, going even wider as it gets closer to the BB.

Blending this into the headtube with an off-center aero profile along with loads of other tricks gives you a bike that feels so much faster than your brain can compute. Because let's be honest, when you see those tires, your brain gets ready for that slow, boring paved performance of a mountain bike. But thanks to your riding position, the aerodynamics, the BB stiffness and the narrow Q-factor, the Ultra actually feels 100% like a road bike when you want to go fast. Even when muddy.

Features:

  • PERFECT AERO CUTOUT: Close-fitting cutout to shield the rear wheel and achieve the most speed.
  • MIND THE GAP: No oversized gaps between front tire & downtube for better airflow transition and less turbulence.
  • HUGE CLEARANCE: The original Exploro set today's standard for up to 54mm tire clearance. The Ultra has up to 61mm!
  • 60MM DOWNTUBE NECK: Upper downtube necks down to 60mm to pick up the airflow coming off the front tire.
  • 75MM DOWNTUBE BASE: Lower downtube aero profile is 75mm wide to fully shield water bottle.
  • SIZE-SPECIFIC DOWNTUBE: Reduced depth on smaller sizes to keep frame compliant and keep space for bottles.
  • MINIMALIST CROWN: With the advent of disc brakes, crowns don't need that bulk of material and can be reshaped for better strength, stiffness and weight. Plus better aerodynamics.
  • PURE-ROAD FORK LENGTH: With the shorter crown, 3T can make their forks 25mm (1 inch) shorter than other gravel bikes. Exactly the same as a road fork. This offers better stiffness, lower weight, an easier steering geometry and better aerodynamics.
  • DOUBLE-DROP CHAINSTAYS: Dropping the drive-side chainstay improves tire & crank clearance. Dropping the other side as well creates a much more efficient structure behind the BB for higher stiffness & strength as well as lower weight.
  • INTEGRATED FENDER MOUNTS: Invisible until you need them.
  • SELF-ALIGNING WEDGE CLAMP: Self-adjusting bolt angle for higher clamping forces with lower torque.
  • AERO SEATTUBE+ROUND SEATPOST: The seattube is kept aero yet it fits a round 27.2mm seatpost so you have many round, dropper or suspension post options.

  • Unidirectional pre-preg carbon, High-modulus/high-strength performance blend layup
  • Fango Ultra Fork w/ compact crown
  • Integrated headset, sealed cartridge 1-1/8"+1.5", 36°
  • 3T Carbon 27.2 round seatpost - Zero offset
  • 160mm pre-set brake flat-mounts
  • 100x12 front - 142x12 rear
  • BB386EVO

Returns: This product is overweight and/or oversize and does not qualify for our fixed rate return shipping label. If you need to return this item, we can offer a return shipping label at our discounted shipping rates, or you can arrange for your own return shipping.

B-Stock - This product has one or more B-Stock units available. These units can be purchased at a discount (see option select). B-Stock units were returned from other customers and may have missing or damaged packaging materials. These units are otherwise as new. The full manufacturer warranty applies. Click Here for more information.

Signature will be required when taking delivery of this product.

Specifications

54cm - Steel Blue

Mfg PartNum: 9205DADK98C

56cm - Steel Blue

Mfg PartNum: 9205DADL98C

56cm - Race Green

Mfg PartNum: 9205DADL99H

XXS - Black Glossy

Mfg PartNum: 9205DADI47M

51cm - Black Glossy

Mfg PartNum: 9205DADJ47M

54cm - Black Glossy

Mfg PartNum: 9205DADK47M

56cm - Black Glossy

Mfg PartNum: 9205DADL47M

58cm - Black Glossy

Mfg PartNum: 9205DADM47M

61cm - Black Glossy

Mfg PartNum: 9205DADN47M
